Scientists create single-atom bit, smallest memory in the world

November 17, 2013

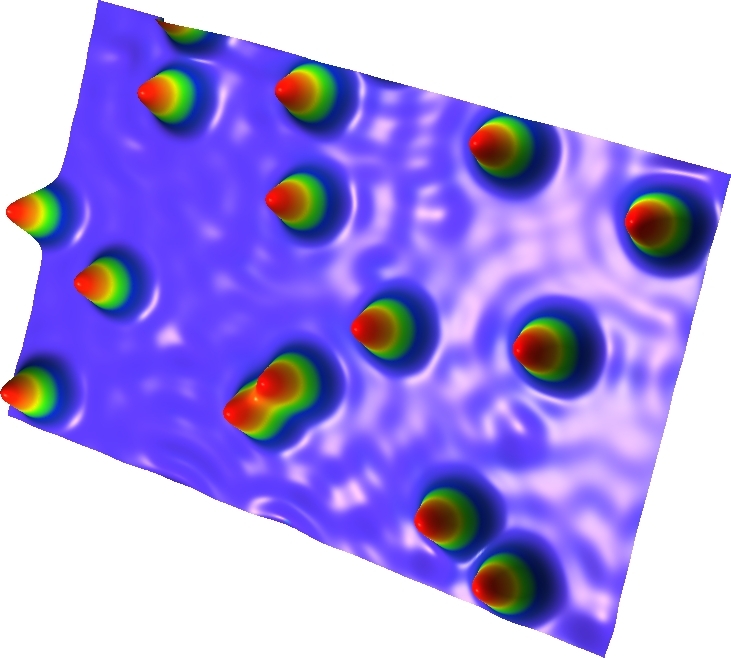

The scanning tunneling microscope makes single holmium atoms on a platinum surface visible (credit: T. Miyamachi/KIT)

Karlsruhe Institute of Technology (KIT) researchers have taken a big step towards miniaturizing magnetic data memory down to a single-atom bit: they fixed a single atom on a surface so the magnetic spin remained stable for ten minutes.

“A single atom fixed to a substrate is [typically] so sensitive that its magnetic orientation is stable only for less than a microsecond,” said Wulf Wulfhekel of KIT.

A compound of several million atoms has been needed to stabilize a magnetic bit longer than that. That’s because the magnetic moments of these atoms are normally easily destabilized by interactions with electrons, nuclear spins, and lattice vibrations of the substrate.

The finding opens up the possibility of designing more compact computer memories and could also be the basis for quantum computers, Wulfhekel said.

How to create a single-atom bit

In their experiment, the researchers placed a single holmium atom onto a platinum substrate. At temperatures close to absolute zero (about 1 degree Kelvin), the atom was nearly vibration-free. They measured the magnetic orientation of the atom using the fine tip of a scanning tunneling microscope. The magnetic spin changed after about 10 minutes — “about a billion times longer than that of comparable atomic systems,” Wulfhekel said.

Abstract of Nature paper
Single magnetic atoms, and assemblies of such atoms, on non-magnetic surfaces have recently attracted attention owing to their potential use in high-density magnetic data storage and as a platform for quantum computing12345678. A fundamental problem resulting from their quantum mechanical nature is that the localized magnetic moments of these atoms are easily destabilized by interactions with electrons, nuclear spins and lattice vibrations of the substrate345. Even when large magnetic fields are applied to stabilize the magnetic moment, the observed lifetimes remain rather short56 (less than a microsecond). Several routes for stabilizing the magnetic moment against fluctuations have been suggested, such as using thin insulating layers between the magnetic atom and the substrate to suppress the interactions with the substrate’s conduction electrons235, or coupling several magnetic moments together to reduce their quantum mechanical fluctuations78. Here we show that the magnetic moments of single holmium atoms on a highly conductive metallic substrate can reach lifetimes of the order of minutes. The necessary decoupling from the thermal bath of electrons, nuclear spins and lattice vibrations is achieved by a remarkable combination of several symmetries intrinsic to the system: time reversal symmetry, the internal symmetries of the total angular momentum and the point symmetry of the local environment of the magnetic atom.
