Self-soldering nanotubes could replace silicon transistors for flexible electronics

November 27, 2013

University of Illinois researchers have developed a way to solder (connect) carbon nanotubes, which are too small for even the world’s tiniest soldering iron.

Researchers have been exploring using carbon nanotubes as transistors instead of traditional silicon, because they are easier to transport onto alternate substrates, such as thin sheets of plastic, for low-cost flexible electronics or flat-panel displays.

Carbon nanotubes are high-quality conductors, but creating single tubes suitable to serve as transistors is very difficult. Arrays of nanotubes are much easier to make, but the current has to hop through junctions from one nanotube to the next, slowing it down. In standard electrical wires, such junctions would be soldered, but how could the gaps be bridged on such a small scale?

Hot-wiring a nanotube

“It occurred to me that these nanotube junctions will get hot when you pass current through them,” said  electrical and computer engineering professor Joseph Lyding, “kind of like faulty wiring in a home can create hot spots. In our case, we use these hot spots to trigger a local chemical reaction that deposits metal that nano-solders the junctions.”

The nano-soldering process is simple and self-regulating (see video). It takes only seconds and improves the device performance by an order of magnitude — almost to the level of devices made from single nanotubes, but much easier to manufacture on a large scale, he said.

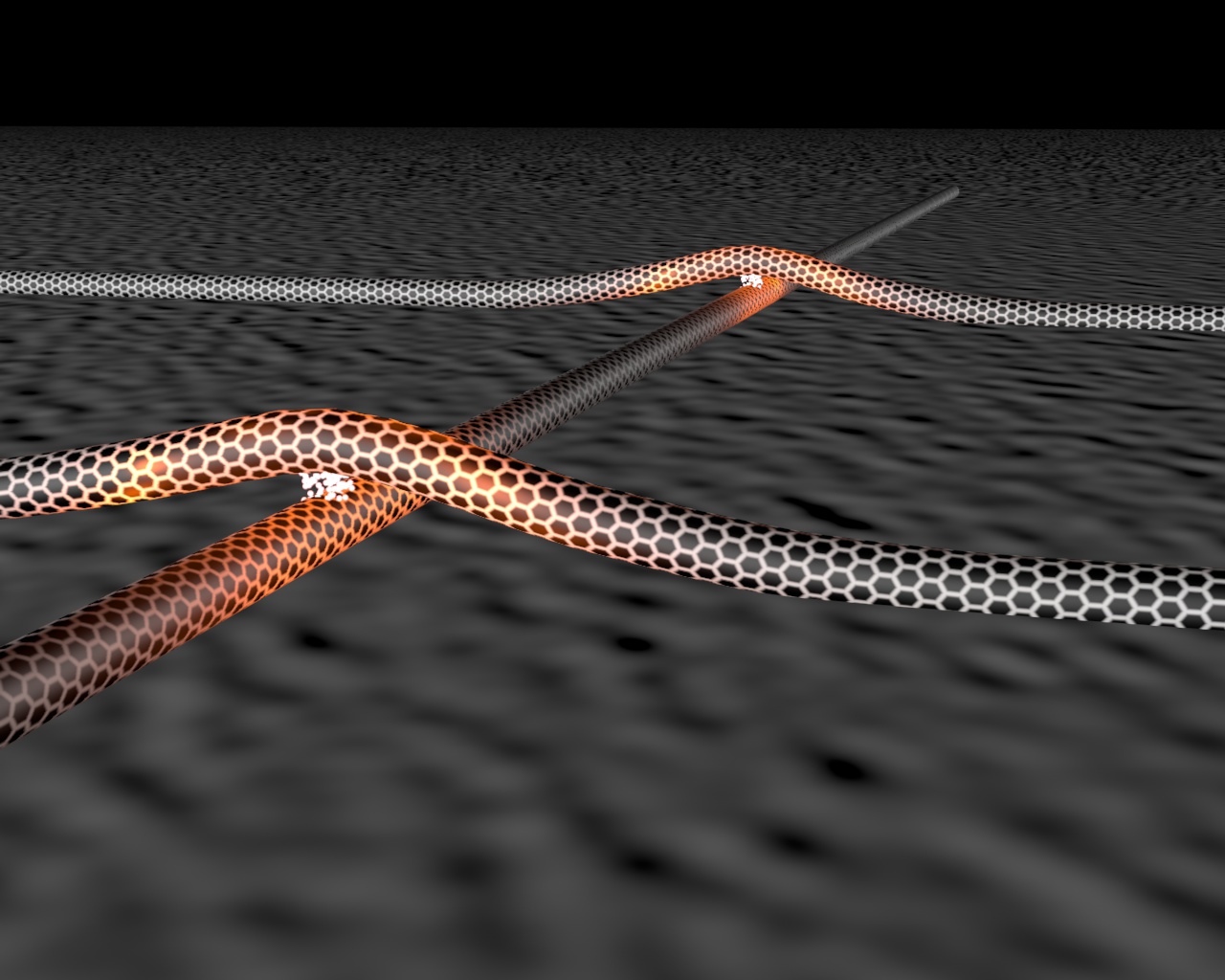

1. A carbon nanotube array is placed in a chamber pumped full of the metal-containing gas molecules. When a current passes through the transistor, the junctions heat because of resistance as electrons flow from one nanotube to the next. (Credit: Joseph W. Lyding/University of Illinois)

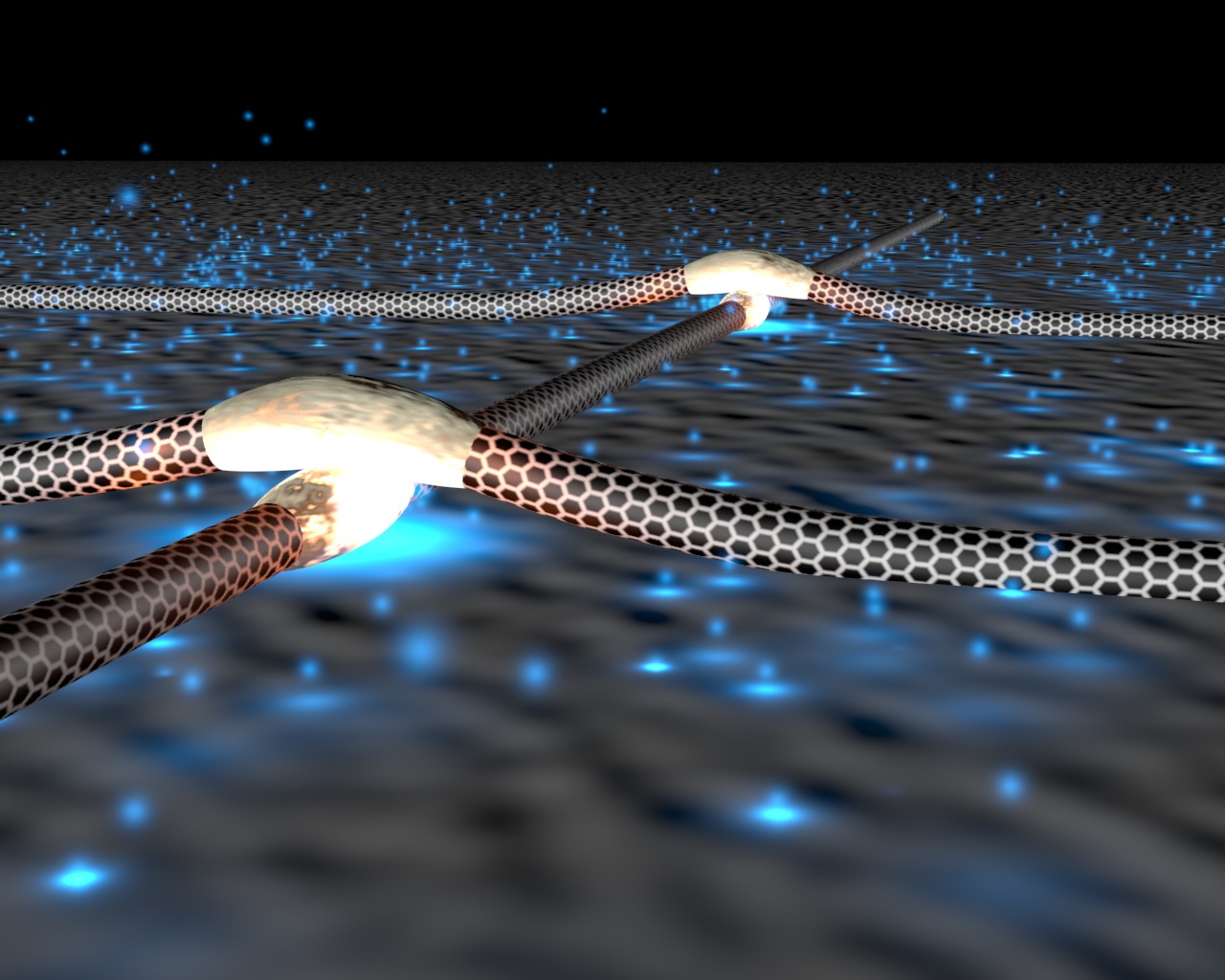

2. The molecules react to the heat, depositing the metal at the hot spots and effectively “soldering” the junctions. Then the resistance drops, as well as the temperature, so the reaction stops. (Credit: Joseph W. Lyding/University of Illinois)

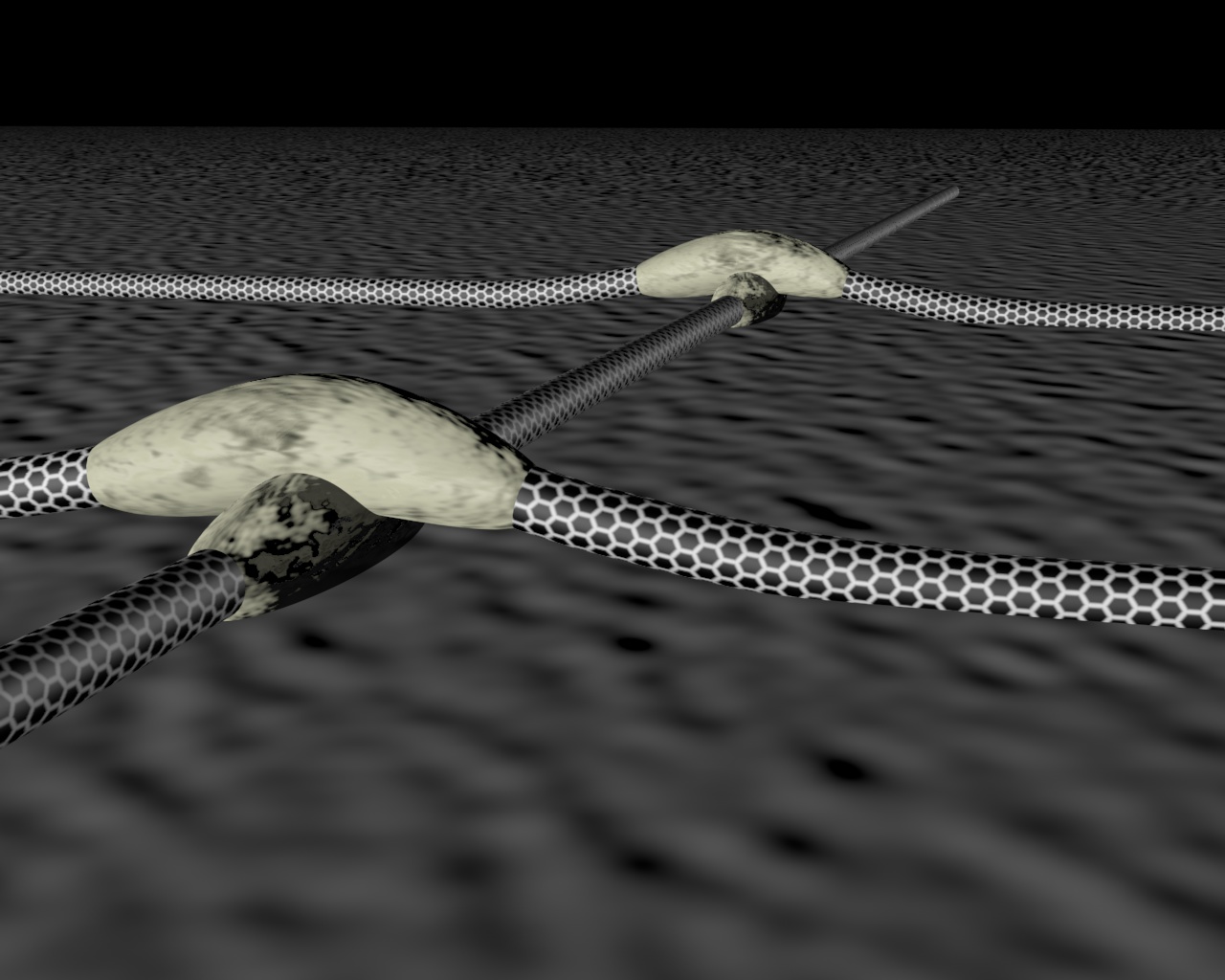

3. Final result: fully metallized nanotube-nanotube junctions (credit: Joseph W. Lyding/University of Illinois)

Nanotube-based computer chips

“It would be easy to insert the CVD [chemical vapor deposition] process in existing process flows,” Lyding said. “CVD technology is commercially available off-the-shelf. People can fabricate these transistors with the ability to turn them on so that this process can be done. Then when it’s finished they can finish the wiring and connect them into the circuits. Ultimately it would be a low-cost procedure.”

“Other methods have been developed to address the nanotube junction resistance problem, but they are generally top-down and quite slow,” Lyding told KurzweilAI. “Our method is self-aligned and self-limiting and is therefore easily implemented.”

The method is easy to implement and could even be used to create complete computer chips, he said. “We are probably looking at one to three years for commercial applications that incorporate our process.”

The National Science Foundation and the Office of Naval Research supported this work.

Abstract of Nano Letters paper

The performance of carbon nanotube network (CNN) devices is usually limited by the high resistance of individual nanotube junctions (NJs). We present a novel method to reduce this resistance through a nanoscale chemical vapor deposition (CVD) process. By passing current through the devices in the presence of a gaseous CVD precursor, localized nanoscale Joule heating induced at the NJs stimulates the selective and self-limiting deposition of metallic nanosolder. The effectiveness of this nanosoldering process depends on the work function of the deposited metal (here Pd or HfB2), and it can improve the on/off current ratio of a CNN device by nearly an order of magnitude. This nanosoldering technique could also be applied to other device types where nanoscale resistance components limit overall device performance.
