Portable solar-powered desalination system

October 19, 2010

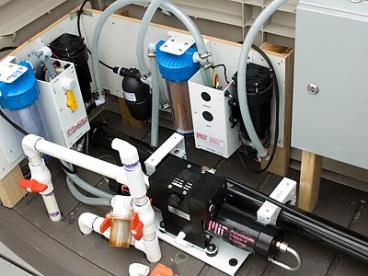

A solar photovoltaic panel powers pumps that push seawater through a permeable membrane to remove salt and other minerals. (Melanie Gonick)

A team from MIT’s Field and Space Robotics Laboratory (FSRL) in the Department of Mechanical Engineering has designed a solution: a solar-powered desalination system that could be rapidly deployed in crisis situations to produce drinking water.

The portable system could also be used in remote areas where supplying energy and clean water can be logistically complex and expensive, such as desert locations or farms and small villages in developing countries.

Led by Steven Dubowsky, a professor in both the Department of Mechanical Engineering and the Department of Aeronautics and Astronautics, and graduate students Amy Bilton and Leah Kelley, the group built a small prototype of the system last spring to test algorithms they had developed to run it. They have since demonstrated that the prototype is capable of producing 80 gallons of water a day in a variety of weather conditions. They estimate that a larger version of the unit, which would cost about $8,000 to construct, could provide about 1,000 gallons of water per day. Dubowsky and his students also estimate that one C-130 cargo airplane could transport two dozen desalination units — enough to provide water for 10,000 people.

The team presented a paper reporting preliminary results about its prototype system last week at the EuroMed 2010-Desalination for Clean Water and Energy Conference.

Designing for optimal control

Funded by MIT’s Center for Clean Water and Clean Energy in collaboration with the King Fahd University of Petroleum and Minerals (KFUPM), the research is aimed at designing small-scale systems for remote regions that don’t have access to vast amounts of electricity. The systems are also designed so that they can be cost-effectively assembled from standard parts and put into operation within hours using local human capital.

Another objective is to create a device that can operate efficiently over a range of solar conditions. Unlike conventional solar-powered desalination systems that run on expensive, short-life batteries when it gets cloudy, this system is designed for “optimal control,” meaning that the system’s computer can change certain variables, such as the power of the pump or the position of the valves, to maximize water output in response to changes in sunshine, temperature and water demand. Various sensors are connected to a control computer that alerts operators when to make these changes. “If it’s very sunny, the system will work faster and produce more water, but even when it’s cloudy, it will still produce water,” says MechE graduate student and team member Kelley.

This video is a sequence of time-lapse photos of the system operating on a partly cloudy day in Boston. The top left shows the entire system, and the top right shows a tank that is filled with water that has been desalinated. The bottom image plots the solar radiation that is being received by the panel over the course of the day. Video: Steven Dubowsky, Amy Bilton, Leah Kelley

The system relies on reverse osmosis, a filtration method that removes molecules and ions such as salt from solutions by applying pressure to the fluid as it flows over a permeable membrane. This process begins as photons, or particles of light from the sun, fall onto a solar photovoltaic panel and excite electrons in that panel. This activity generates electric power that pushes seawater through various pumps until it is sent — at extremely high pressure — into a vessel that has a permeable membrane made of polymer material. As a result of the high pressure, the water that diffuses through the membrane has had minerals removed.

Turnkey operations

Penny Boston, a professor in the Earth and Environmental Sciences Department at the New Mexico Institute of Mining & Technology, says the optimal-control design is a novel approach that hasn’t been used before for small plants in remote or post-disaster situations and may be crucial for operating the systems in the difficult circumstances that Dubowsky’s team envisions. But she cautions that the systems must be “extremely robust” and “almost turnkey” so that people without engineering backgrounds can use them.

Dubowsky and his students agree, noting that they continue to address ease of operability as they gather data on how the system performs. Recently, they sent a small-scale unit to the Middle East for testing. In addition to trying to determine ways to produce more water, they are looking at how they might change the system’s design to make the system more durable.

Adapted from materials provided by MIT.
